OS04: Scheduling

Based on Chapter 3 of [Hai19]

(Usage hints for this presentation)

Computer Structures and Operating Systems 2023
Dr. Jens Lechtenbörger (License Information)

Data Science: Machine Learning and Data Engineering (Prof. Gieseke)
Dept. of Information Systems
WWU Münster, Germany

1. Introduction

1.1. OS Plan

OS Overview (Wk 20)
OS Introduction (Wk 21)
Interrupts and I/O (Wk 21)
Threads (Wk 23)

Thread Scheduling (Wk 24)

Mutual Exclusion (MX) (Wk 25)
MX in Java (Wk 25)
MX Challenges (Wk 25)
Virtual Memory I (Wk 26)
Virtual Memory II (Wk 26)
Processes (Wk 27)
Security (Wk 28)

OS course plan, summer 2022

1.2. Previously on OS …

What is multitasking?
What are blocking system calls?
What types of threads exist?
What is preemption?

1.2.1. CPU Scheduling

CPU scheduling

1.3. Today’s Core Questions

How does the OS manage the shared resource CPU? What goals are pursued?
How does the OS distinguish threads that could run on the CPU from those that cannot (i.e., that are blocked)?
How does the OS schedule threads for execution?

1.4. Learning Objectives

Explain thread concept (continued)
- Including states and priorities
Explain scheduling mechanisms and their goals
Apply scheduling algorithms
- FCFS, Round Robin

1.5. Retrieval Practice

Before you continue, answer the following; ideally, without outside help.
- What is a process, what a thread?
- What does concurrency mean?
  - How does it arise?
- What is preemption?

1.5.1. Thread Terminology

1. Introduction
2. Scheduling
3. Thread States
4. Scheduling Goals
5. Scheduling Mechanisms
6. Pointers beyond Class Topics
7. Conclusions

2. Scheduling

2.1. CPU Scheduling

With multitasking, lots of threads share resources
- Focus here: CPU
Scheduling (planning) and dispatching (allocation) of CPU via OS
- Non-preemptive, e.g., FIFO scheduling
  - Thread on CPU until yield, termination, or blocking
- Preemptive, e.g., Round Robin scheduling
  - Typical case for desktop OSs
    1. Among all threads, schedule and dispatch one, say T₀
    2. Allow T₀ to execute on CPU for some time, then preempt it
    3. Repeat, go to step (1)

(Similar decisions take place in industrial production, which you may know from operations management)

Scheduling is the planning of resource allocations. Here, we just consider the allocation of the resource CPU among multiple threads.

Concerning wording, the planning itself is called scheduling, while the allocation is called dispatching. Thus, after making a scheduling decision, the OS dispatches one thread to run on the CPU.

Two major scheduling variants are non-preemptive and preemptive ones. With non-preemptive scheduling, the OS allows the currently executing thread to continue as long as it wants. The bullet point names some situations when a thread might stop, which is when the next scheduling decision takes place.

With preemptive scheduling, the OS may pause, or preempt, a thread in the middle of its execution although it could continue with more useful work on the CPU. Here, the OS uses a timer to define the length of some time slice, for which the dispatched thread is allowed to run at most. If the thread executes a blocking system call or terminates before the timer runs out, the OS cancels the timer and makes the next scheduling decision. When the timer runs out, it triggers an interrupt, causing the interrupt handler to run on the CPU for the next scheduling decision.

2.2. Sample Scheduling Goals

Scheduling is hard, as various goals with trade-offs exist
- Trade-off: Improvement for one goal may negatively affect others (discussed subsequently)
Sample goals
- Efficient resource usage
- Fairness (e.g., equal CPU shares per thread)
- Response time (definition)
- Throughput (definition)

3. Thread States

3.1. Reasons to Distinguish States

Recall: Some threads may be blocked
- E.g., wait for I/O operation to finish or sleep system call (recall Simpler2Threads)
  - More generally, threads may perform blocking system calls
- Busy waiting would be a waste of CPU resources
  - If other threads could run on CPU

OS distinguishes thread states (details subsequently)
- Tell threads apart that might perform useful computations (runnable) on the CPU from those that do not (blocked/waiting)
- Scheduler does not need to consider waiting threads
- Scheduler considers runnable threads, selects one, dispatches that for execution on CPU (which is then running)

3.2. OS Thread States

Different OSs distinguish different sets of states; typically:
- Running: Thread(s) currently executing on CPU (cores)
- Runnable: Threads ready to perform computations
- Waiting or blocked: Threads waiting for some event to occur

OS manages states via queues (with suitable data structures)
- Run queue(s): Potentially per CPU core
  - Containing runnable threads, input for scheduler
- Wait queue(s): Potentially per event (type)
  - Containing waiting threads
    - OS inserts running thread here upon blocking system call
    - OS moves thread from here to run queue when event occurs

3.3. Thread State Transitions

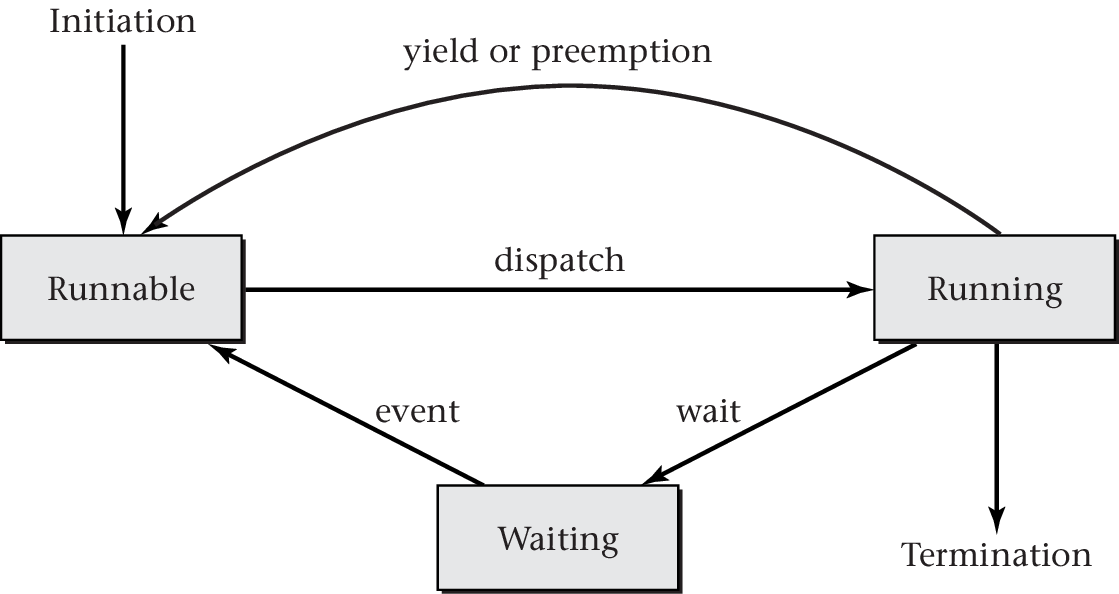

Figure 3.3 of cite:Hai17

Figure 3.3 of [Hai17]

Figure by Max Hailperin under CC BY-SA 3.0; converted from GitHub

This diagram shows typical state transitions caused by actions of threads, decisions of the OS, and external I/O events. State changes are always managed by the OS.

Newly created threads, such as the ones you created in Java, are Runnable. When the CPU is idle, the OS’ scheduler executes a selection algorithm among the Runnable threads and dispatches one to run on the CPU. When that thread yields or is preempted, the OS remembers that thread as Runnable.

If the thread invokes a blocking system call, the OS changes its state to Waiting. Once the event for which the thread waits has happened (e.g., a key pressed or some data has been transferred from disk to RAM), the OS changes the state from Waiting to Runnable. At some later point in time, that thread may be selected by the scheduler to run on the CPU again.

In addition, an outgoing arc Termination is shown from state Running, which indicates that a thread has completed its computations (e.g., the main function in Java ends). Actually, threads may also be terminated in states Runnable and Waiting, which is not shown here, but which can happen if a thread is killed (e.g., you end a program or shut down the machine).

3.4. Scheduling Vocabulary

4. Scheduling Goals

4.1. Goal Overview

Performance
- Throughput
  - Number of completed threads (computations, jobs) per time unit
  - More important for service providers than users
- Response time
  - Time from thread start or interaction to useful reaction

User control
- Resource allocation
- Mechanisms for urgency or importance, e.g., priorities

4.1.1. Throughput

To increase throughput, avoid idle times of CPU
- Thus, reassign CPU when currently running thread needs to wait
- Context switching necessary
Recall: Context switching comes with overhead
- Overhead reduces throughput

4.1.2. Response Time

Frequent context switches may help for small response time
- However, their overhead hurts throughput
Responding quickly to one thread may slow down another one
- May use priorities to indicate preferences

4.1.3. Resource Allocation

What fraction of resources for what purpose?

Proportional share scheduling
- E.g., multi-user machine: Different users obtain same share of CPU time every second
  - (Unless one pays more: Larger share for that user)

Group scheduling: Assign threads to groups, each of which receives its proportional share
→ Linux scheduler later on

4.2. Priorities in Practice

Different OSs (and execution environments such as Java) provide different means to express priority
- E.g., numerical priority, so-called niceness value, deadline, …
- Upon thread creation, its priority can be specified (by the programmer, with default value)
  - Priority recorded in TCB
  - Sometimes, administrator privileges are necessary for “high” priorities
  - Also, OS tools may allow to change priorities at runtime

4.3. Thread Properties in Java

Java API
- “Every thread has a priority. Threads with higher priority are executed in preference to threads with lower priority.”
- May interpret as: Preemptive, priority-driven scheduling
Priorities via integer values
- Higher number → more CPU time
- Preemptive
  - Current thread has highest priority
  - Newly created thread with higher priority replaces old one on CPU
  - Most of the time (above quote from API is vague)
Time slices not guaranteed (implementation dependent)
- Starvation possible

5. Scheduling Mechanisms

5.1. Three Families of Schedulers

This section covers three families of schedulers

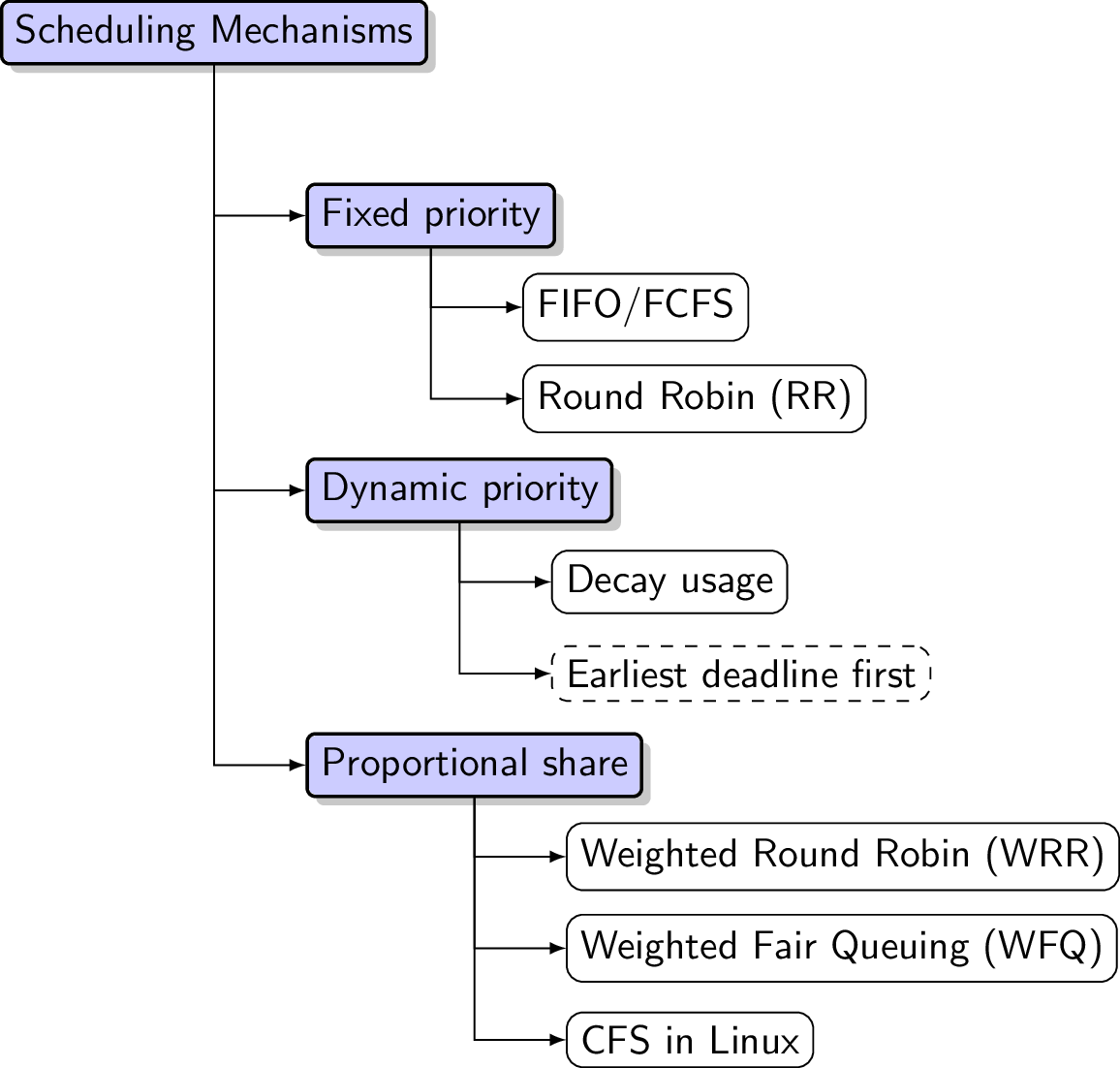

Visualization on right shows structure of this section
- With sample algorithms per family

Scheduling Mechanisms

5.1.1. Notes on Scheduling

For scheduling with pen and paper, you need to know arrival times and service times for threads
- Arrival time: Point in time when thread created
- Service time: CPU time necessary to complete thread
  - (For simplicity, blocking I/O is not considered; otherwise, you would also need to know frequency and duration of I/O operations)

OS does not know either ahead of time
- OS creates threads (so, knowledge of arrival time is not an issue) and inserts them into necessary data structures during normal operation
- When threads terminate, OS again participates
  - Thus, OS can compute service time after the fact
  - (Some scheduling algorithms require service time for scheduling decisions; then threads need to declare that upon start. Not considered here.)

5.2. Fixed-Priority Scheduling

Use fixed, numerical priority per thread
- Threads with higher priority preferred over others
  - Smaller or higher numbers may indicate higher priority: OS dependent

Implementation alternatives
- Single queue ordered by priority
- Or one queue per priority
  - OS schedules threads from highest-priority non-empty queue

Scheduling whenever CPU idle or some thread becomes runnable
- Dispatch thread of highest priority
  - In case of ties: Run one until end (FIFO) or serve all Round Robin

5.2.1. Warning on Fixed-Priority Scheduling

Starvation of low-priority threads possible
- Starvation = continued denial of resource
  - Here, low-priority threads do not receive resource CPU as long as threads with higher priority exist
- Careful design necessary
  - E.g., for hard-real-time systems (such as cars, aircrafts, power plants)
  - (Beware of priority inversion, a topic for a later presentation!)

5.2.2. FIFO/FCFS Scheduling

FIFO = First in, first out
- (= FCFS = first come, first served)
- Think of queue in supermarket
Non-preemptive strategy: Run first thread until completed (or blocked)
- For threads of equal priority

5.2.3. Round Robin Scheduling

Key ingredients
- Time slice (quantum, q)
  - Timer with interrupt, e.g., every 30ms
- Queue(s) for runnable threads
  - Newly created thread inserted at end
- Scheduling when (1) timer interrupt triggered or (2) thread ends or is blocked
  1. Timer interrupt: Preempt running thread
    - Move previously running thread to end of runnable queue (for its priority)
    - Dispatch thread at head of queue (for highest priority) to CPU
      - With new timer for full time slice
  2. Thread ends or is blocked
    - Cancel its timer, dispatch thread at head of queue (for full time slice)

Video tutorial in Learnweb

5.3. Dynamic-Priority Scheduling

With dynamic strategies, OS can adjust thread priorities during execution
Sample strategies
- Earliest deadline first
  - For tasks with deadlines — discussed in [Hai19], not part of learning objectives
- Decay Usage Scheduling

5.3.1. Decay Usage Scheduling

General intuition: I/O bound threads are at unfair disadvantage. (Why?)
- Decrease priority of threads in running state
- Increase priority of threads in waiting state
  - Allows quick reaction to I/O completion (e.g, user interaction)

OS may manage one queue of threads per priority
- Threads move between queues when priorities change
  - Falls under more general pattern of multilevel feedback queue schedulers
Technically, threads have a base priority that is adjusted by OS
- Use Round Robin scheduling (for non-empty queue of highest-priority threads) after priority adjustments

5.3.2. Decay Usage Scheduling in Mac OS X

OS keeps track of CPU usage
- Usage increases linearly for time spent on CPU
  - Usage recorded when thread leaves CPU (yield or preempt)
- Usage decays exponentially while thread is waiting
Priority adjusted downward based on CPU usage
- Higher adjustments for threads with higher usage
  - Those threads’ priorities will be lower than others

5.3.3. Variant in MS Windows

Increase of priority when thread leaves waiting state
- Priority boosting
- Amount of boost depends on wait reason
  - More for interactive I/O (keyboard, mouse) then other types
After boost, priority decreases linearly with increasing CPU usage

5.4.1. WRR vs WFQ with sample Gantt Charts

Threads T1, T2, T3 with weights 3, 2, 1; service times > 30ms; q = 10ms
- Supposed order of arrival: T1 first, T2 second, T3 third
- If threads are not done after shown sequence, start over with T1

Sample Gantt chart for Weighted Round Robin (WRR) scheduling

Figure under CC0 1.0

Sample Gantt chart for Weighted Fair Queuing (WFQ) scheduling

Figure under CC0 1.0

5.5. CFS in Linux

CFS = Completely fair scheduler
- Actually, variant of WRR above
  - Weights determined via so-called niceness values
    - (Lower niceness means higher priority)
Core idea
- Keep track of how long threads were on CPU
  - Scaled according to weight
  - Time spent on CPU called virtual runtime
    - Represented efficiently via red-black tree
- Schedule thread that is furthest behind
  - This thread received least amount of CPU time → allow to catch up
  - Until preempted or time slice runs out
- (Some details in [Hai19])

5.6. When to Schedule

Unless explicitly specified otherwise, we consider preemptive scheduling with time slices and priorities
- Threads may be removed from CPU before they are “done”
  - As with Linux kernel, under stricter interpretation than Java’s:
    - “All scheduling is preemptive: if a thread with a higher static priority becomes ready to run, the currently running thread will be preempted and returned to the wait list for its static priority level.”
Scheduling based on thread states, priorities, and time slices
- Sample events that may initiate scheduling
  - Thread state(s) change
    - E.g., thread created or finished, blocking system call, I/O finished; later: (un-) locking
  - Thread priorities change
  - Time slice runs out

Let us revisit when scheduling takes place. It turns out that precise answers depend on design and implementation decisions. We consider preemptive scheduling of threads where time slicing enables multitasking; concerning priorities, we suppose that they are handled with preemption as in the case of Linux, for which a quote from a man page is shown on the slide.

Importantly, the scheduler only considers runnable threads. Thus, state changes may require a scheduling decision. E.g., if a thread invokes a blocking systems call, some other thread needs to be selected to run. Similarly, when an event occurs that makes one or more previously blocked threads runnable, scheduling may happen: If a newly runnable thread has highest priority, the currently running one is preempted and scheduling takes place to select a new one; otherwise, the currently running thread is likely to continue (but there may be implementations that disagree).

Similarly, if the priority of the currently running thread decreases below that of other threads or if some other thread or threads gain highest priority, scheduling must take place. In contrast, the creation of new threads with low priority does not require scheduling.

Clearly, preemptive scheduling also takes place when the OS believes that the current thread ran long enough.

Be careful not to confuse interrupt processing with scheduling. Indeed, some of the above events involve interrupts while others do not: What matters are events with relevance to scheduling as just discussed; whether an interrupt was involved in an event is less important.

5.7. Self-Study Task for Scheduling

This task is available for self-study in Learnweb.

Perform Round Robin scheduling given the following situation:

Thread	Arrival Time	Service Time
T1	0	3
T2	1	6
T3	4	3
T4	9	6
T5	10	2

6. Pointers beyond Class Topics

6.1. Fair Queuing

Fair queuing is a general technique
- Also used, e.g., in computer networking
Intuition
- System is fair if at all times every party has progressed according to its share
  - This would require infinitesimally small steps
Reality
- Approximate fairness via “small” discrete steps
- E.g., CFS

6.1.1. CFS with Blocking

Above description of CFS assumes runnable threads
Blocked threads lag behind
- If blocked briefly, allow to catch up
- If blocked for a long time (above threshold), they would deprive all other threads from CPU once awake again
  - Hence, counter-measure necessary
    - Give up fairness
  - Forward virtual runtime to be slightly less than minimum of previously runnable threads
Effect similar to dynamic priority adjustments of decay usage schedulers

6.1.2. CFS with Groups

CFS allows to assign threads to (hierarchies of) groups
- Scheduling then aims to treat groups fairly
For example
- One group per user
  - Every user obtains same CPU time
- User-defined groups
  - E.g., multimedia with twice as much CPU time as programming (music and video running smoothly despite compile jobs)

7. Conclusions

7.1. Summary

OS performs scheduling for shared resources
- Focus here: CPU scheduling
- Subject to conflicting goals
CPU scheduling based on thread states and priorities
- Fixed vs dynamic priorities vs proportional share
- CFS as example for proportional share scheduling

Bibliography

[Hai19] Hailperin, Operating Systems and Middleware – Supporting Controlled Interaction, revised edition 1.3.1, 2019. https://gustavus.edu/mcs/max/os-book/

License Information

This document is part of an Open Educational Resource (OER) course on Operating Systems. Source code and source files are available on GitLab under free licenses.

No warranties are given. The license may not give you all of the permissions necessary for your intended use.

In particular, trademark rights are not licensed under this license. Thus, rights concerning third party logos (e.g., on the title slide) and other (trade-) marks (e.g., “Creative Commons” itself) remain with their respective holders.
