Computer Structures and Operating Systems 2019
Dr. Jens Lechtenbörger (License Information)

DBIS Group
Prof. Dr. Gottfried Vossen
Chair for Computer Science
Dept. of Information Systems
WWU Münster, Germany

1 Introduction

1.1 Recall: Big Picture of CSOS

  • Computer Structures and Operating Systems (CSOS)
    • CS: How to build a computer from logic gates?

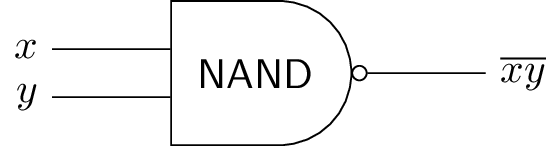

      NAND” under CC0 1.0; from GitLab

      • Von Neumann architecture
      • CPU (ALU), RAM, I/O

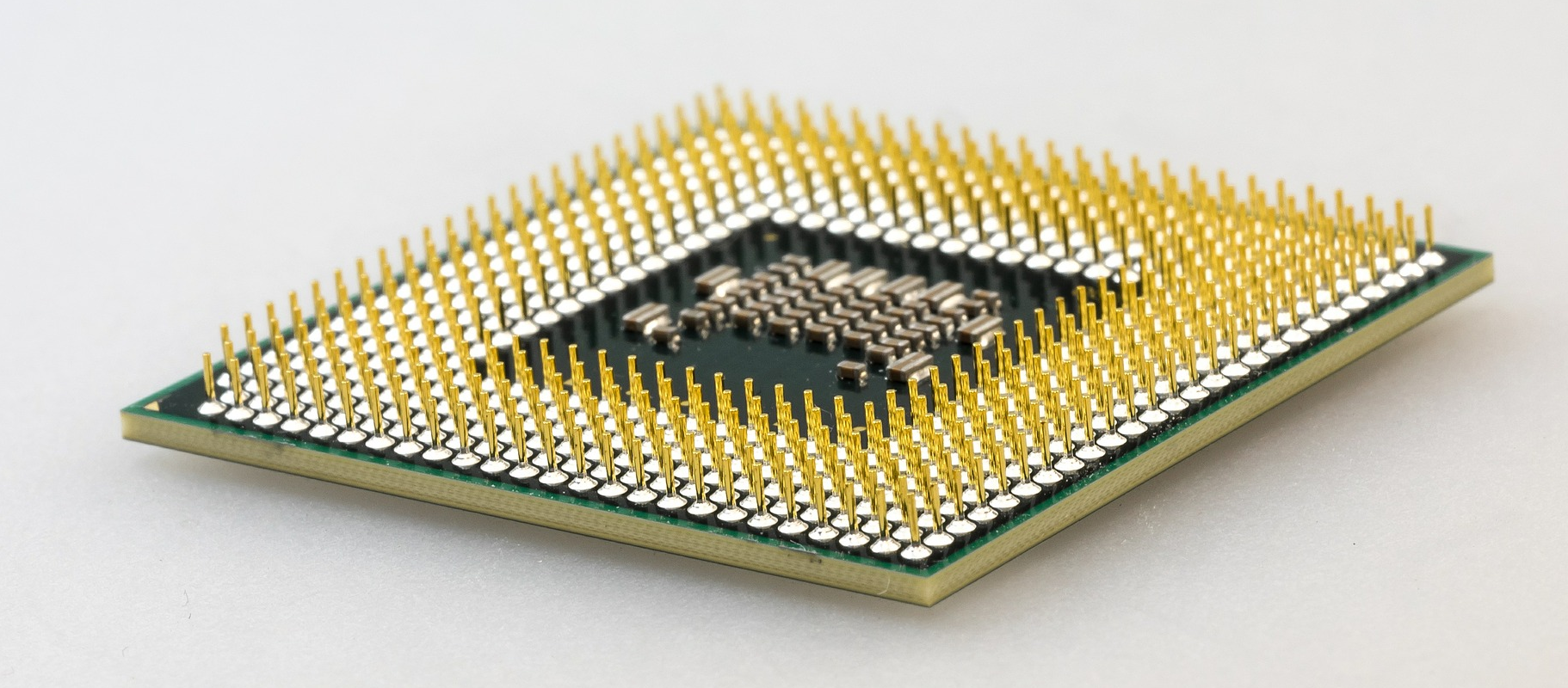

        CPU” under CC0 1.0; cropped and converted from Pixabay

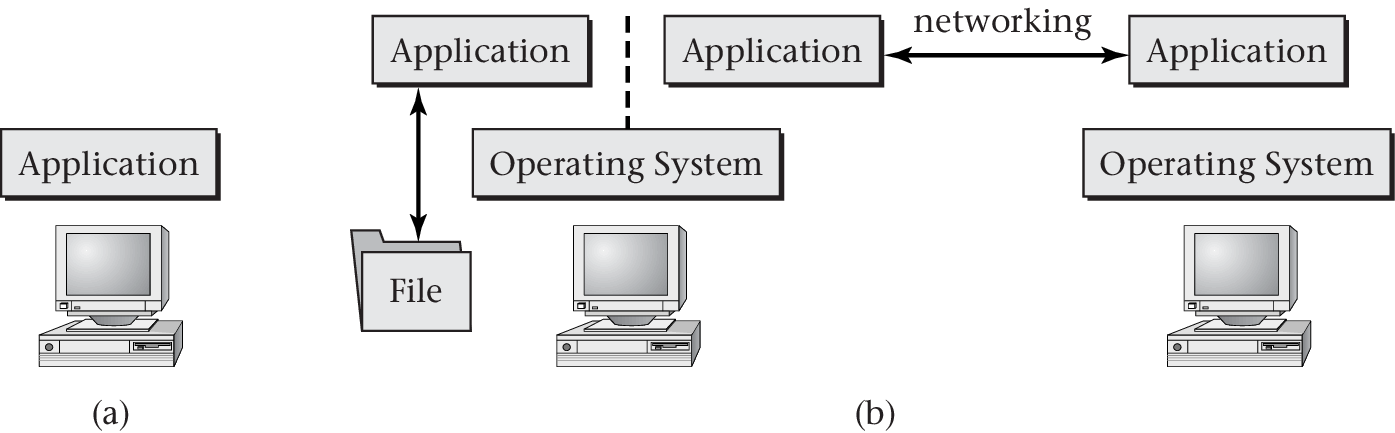

    • OS: What abstractions do Operating Systems provide for applications?
      • Processes and threads with scheduling and concurrency, virtual memory

        Pong in TECS VM

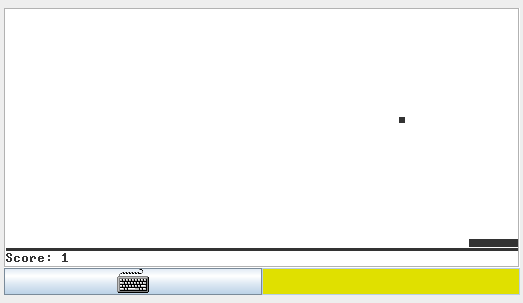

        Pong in TECS VM” under GPLv2; screenshot of VM of TECS software suite

      • What is currently executing why and where, using what resources how?

1.1.1 OS Responsibilities

What does your OS even do?

What does your OS even do?

© 2016 Julia Evans, all rights reserved; from julia's drawings. Displayed here with personal permission.

1.2 Prerequisite Knowledge

  • Be able to write, compile, and execute small Java programs
    • What is an object? What is the meaning of this in Java?
    • How do you execute a program that requires a command line argument?
  • Be able to explain basic data structures (stacks, queues, trees) and algorithms (in particular, hashing)
  • Being able to explain the database transaction concept and update anomalies

2 OS Teaching

2.1 OS Part

  • Sharp cut ahead
    • So far, we followed a book with projects to build a computer bottom up
    • Unfortunately, nothing similar exists to build an Operating System (OS) bottom up
      • (Or is far too technical for our purposes)
  • Thus, the OS part presents major concepts and techniques of modern OSs
    • Some topics build upon each other
    • Some are more isolated
    • Goal: Understand and control your devices
      • Performance
      • Trust

2.2 OS Exercises

  • While the CS part had weekly projects, this will not be the case for the OS part
    • Exercise work (with pen and paper, games, simulators, programs, shell) will be part of JiTT assignments and in-class meetings

2.3 Textbook(s)

2.4 Presentations (1/2)

2.5 Presentations (2/2)

  • As usual, (pointers to) presentations are available in Learnweb
  • Presentations include

    • Learning objectives
    • Explanations for class topics
    • JiTT assignments
      • More on JiTT in a couple of minutes
    • Slides for in-class meetings
      • Topics that I plan to discuss in-class (after your questions have been answered)
    • Some slides contain audio explanations, e.g., the one starting with this bullet point

3 Outlook on Major OS Concepts

3.1 I/O

  • OS manages input/output (I/O) operations
    • Access to hardware
      • E.g., keyboard, disk, network
  • Modern CPUs support interrupts

    • I/O devices use interrupts to signal I/O events
      • CPU executes OS code of interrupt handler

    → Presentation on interrupts

3.2 Manage Computations

  • We start programs/apps
  • The OS manages processes

    • Process = OS management unit
      • Abstraction for computation
        • With resources
      • Processes isolated from each other
    • Potentially, each process with multiple threads
    • Thread = another OS management unit
      • Part of process
      • Defined by instructions to execute
        • E.g., an online game: different threads for game AI(s), GUI events, network handling
      • Threads of same process share resources

3.2.1 Threads

  • OS needs to manage threads

    • Housekeeping information, e.g.:
      • What did each thread do the last time it was on a CPU core?
        • What is the next instruction to execute?
        • In what state (registers, stack, I/O)?

    → Chapter 2 of [Hai17], presentation on threads

  • OS needs to allocate CPU (cores) to different threads

    • (CPU) Scheduling

    → Chapter 3 of [Hai17], presentation on scheduling

3.2.2 CPU Scheduling

CPU scheduling

CPU scheduling

© 2016 Julia Evans, all rights reserved; from julia's drawings. Displayed here with personal permission.

3.3 Controlling Concurrency

  • Processes and threads may need to interact
    • E.g., some producing data, others consuming
      • Shared resources
      • Prevent consumer from getting ahead of producer
      • Prevent producers from overwriting their data
    • Proper relative timing is crucial
    • Need synchronization
      • Recall ACID transactions and locking in DBMS
      • OS concept: Mutual exclusion (MX)

→ Chapter 4 of [Hai17], presentations on MX, MX in Java, MX challenges

3.4 Virtual Memory

  • OS manages main memory (RAM)
  • OS introduces layer of indirection/abstraction
    • Physical addresses (those seen in Hack)
    • Logical/virtual addresses
      • Each process has its own separate virtual address space, starting at address 0
      • OS keeps track where each virtual address is really located in RAM (if at all)
  • Benefits include
    • Protection: Threads of one process can neither “steal” nor “destroy” data of threads in another process
    • Flexibility: Programmers do not need to manage main memory

→ Chapter 6 of [Hai17], presentations Virtual Memory I and Virtual Memory II

3.5 Processes

  • OS unit of management and protection
    • Address space per process
      • Shared by threads of process
  • Files for inter-process communication

→ Chapters 7, 8 of [Hai17], presentation on processes

3.6 Security

  • IT systems are under attack
  • Attacks threaten security goals
  • Security mechanisms protect against attacks

→ Chapter 11 of [Hai17], presentation on security

3.7 Big Picture of OS Sessions

OS Overview image/svg+xml OS Overview Jens Lechtenbörger Summer 2018 Hardware as basis(Discussed in CS part) Applications (Users) System Call Interface WK 20: OS Introduction and Overview Wk 21: I/O and Interrupts Wk 21: Threads as units of computation Wk 22: Thread scheduling Wk 23/25: Concurrency, MX - Primitives provided by OS - Lots of challenges Wk 26: Threads need memory - Instructions and data - OS supports virtual memory Wk 27: Processes and security - OS isolates processes - OS supports access control - OS may support crypto primitives
